Dock shelter with aluminium retractable structure

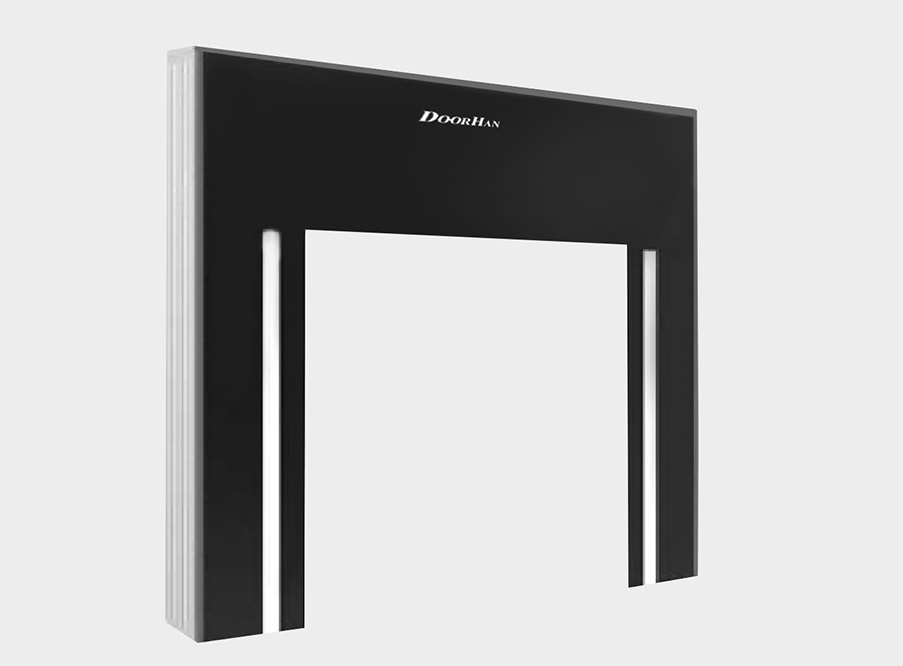

      Dock shelter with aluminium retractable structure frame of D.SH-RT series, is a classic option for use in areas with average traffic intensity. PVC material of which the front sheets are made, possesses elasticity, is wear resistant and high tear resistant. During the loading and unloading operations, the top and vertical side sheets fit the vehicle body providing the necessary tightness. In case of incorrect vehicle parking to the dock, the front frame folds, thanks to the struts and after the work is complete, returns automatically to its original position. The dock is installed using the overlaid method of installation.

        Retractable Dock Shelter มีโครงสร้างพับอลูมิเนียมเป็นแบบคลาสิกสามารถยุบตัวได้สำหรับการติดตั้งที่มีการขนส่งในปริมาณปานกลาง แผ่นรองด้านหน้าผลิตจาก PVC ทนต่อการสึกหรอและทนต่อแรงกระแทกระหว่างรถบรรทุก/ขนถ่ายส่วนหนึ่งของรถบรรทุกอยู่ในตำแหน่งการขนถ่ายสินค้า ด้านบนและด้านข้างแผ่นปิดรถอย่างแน่นหนาและมั่นใจว่าจะปิดสนิท




 Main advantages:

•  folding aluminum construction;

•  the dock shelter topsheet can be either single or double — to provide better contact with the vehicle  body;

•  built-in springs allow the front folding frame to follow the vehicle body, preventing damage to the structure (in the case of incorrect vehicle parking);

•  white reflective stripes located in front of the vertical sheets provide an accurate vehicle parking.




 Dimensions/specifications

 Width, mm  3000 / 3200 / 3400
 Height, mm  3000 / 3200 / 3400 / 4400
 Top sheet
 • Standard  Single
 • On request  Double
 Profile  White aluminium (RAL 9006)

 Technical specifications

 Front fabric — PVC

 Tear resistance in length  more than 550 N
 Tear resistance in width  more than 900 N
 Tear strength limit  250 N/mm
 Metal friction coefficient  0.3
 PVC friction coefficient  0.4
 Thickness  3 mm
 Specific weight  3.6 kg/m
 Operating temperature  from -35 to +90°C

  Side fabric — PVC

 Tear resistance  250 N
 Thickness  0.5 mm
 Specific weight  0.7 kg/m
 Operating temperature  from -35 to +70°C

 Aluminum frame

 Rear frame profiles dimension  50 x 44 mm
 Front frame profiles dimension  45 x 44 mm
 Brace dimension  50 x 25 x 2.5 mm
 Front clamping plate dimension  34 x 4.8 mm

 Weight

 Article  Weight, kg
 D.SH-RT 3.0 x 3.0  83.5
 D.SH-RT 3.0 x 3.2  86
 D.SH-RT 3.0 x 3.4  89.5
 D.SH-RT 3.0 x 4.4  107
 D.SH-RT 3.2 x 3.0  86
 D.SH-RT 3.2 x 3.2  89
 D.SH-RT 3.2 x 3.4  93
 D.SH-RT 3.2 x 4.4  107
 D.SH-RT 3.2 x 4.4  89.5
 D.SH-RT 3.4 x 3.2  93
 D.SH-RT 3.4 x 3.4  94.6
 D.SH-RT 3.4 x 4.4  113
