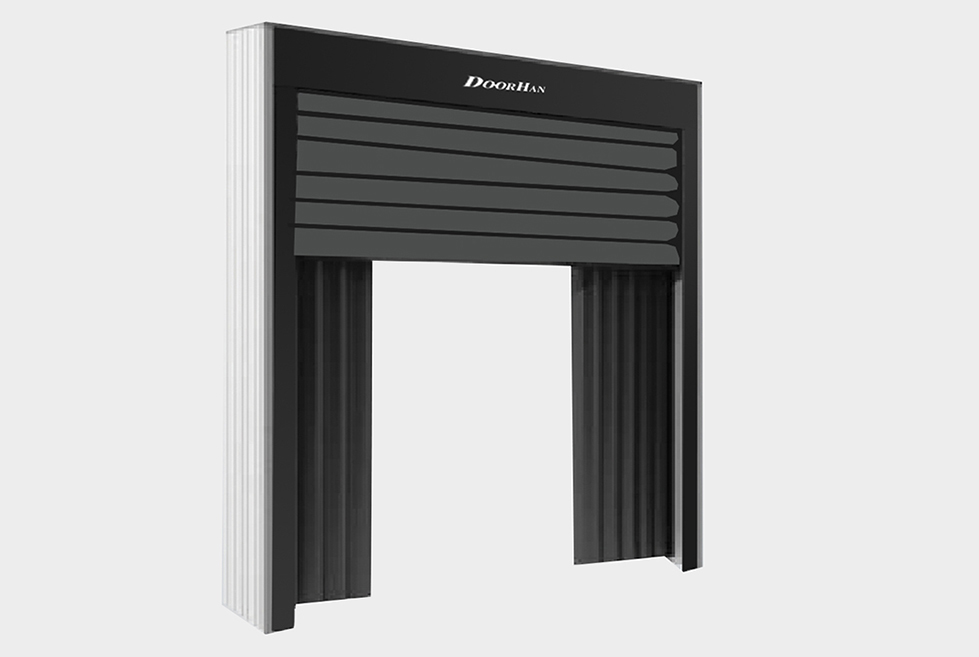

Inflatable dock shelters

         Inflatable dock shelters of DSHINF series, are installed in places where it is required a maximum effective sealing and thermal insulation of the premises (for example, at warehouses with controlled temperature). During loading and unloading operations the vehicle is not pressed against the dock, as other analogs. The inflatable cushion wrap the vehicle body from all sides and ensures a better sealing. The air bags are made of wear resistant material “Cordura” which is high tear resistant. During loading/unloading works the vehicle body partially enters into the dock shelter. The top and side airbags are inflated, providing high tightness between the vehicle body and the premises. Upon completion of works, the cushions deflate. Inflatable dock shelters can be operated from a control panel (by using a special control unit). When using this type of dock shelters, on the platform, in front of the dock must be installed wheels guide or metal bumpers. Installation is done using the overlaid method of installation.

           Inflatable Dock Shelter การปิดผนึกที่ดีที่สุดของสถานที่ควบคุมอุณหภูมิ ระหว่างการบรรทุกและขนถ่ายสินค้า การพองตัวท้ายรถบรรทุก ปิดผนึกกับเบาะ ทำจากความยืดหยุ่นสูงและทนต่อการสึกหรอ ทนความร้อนระหว่างการขนถ่ายที่ส่วนหนึ่งของตัวรถวางอยู่ภายในที่เก็บของตัวถังและเบาะรองด้านข้างจะพองเพื่อให้แน่ใจว่ามีการปิดผนึกระหว่างตัวรถและตัวอาคารหลังจากขนถ่านเสร็จสิ้นลงเบาะยุบ เมื่อกดปุ่มปิด (ไม่ควรเคลื่อนรถออกในขณะที่ถุงลมทำงานอยู่)




  Main advantages:

• the airbags are produced from the wear-resistant material “Cordura”;

• elongated top cushion may be 1200 mm, destined to be used with different types of vehicles;

• inflatable dock shelters can be controlled using control panels.




 Dimensions/specifications

 Width, mm  3410 / 3610
 Height, mm  3300 / 3800 / 4900
 Top cushion lengthening, mm  900 (1200)
 Side cushion lengthening, mm  600
 Top decorative curtain, mm  500
 Side decorative curtain, mm  250
 Profile colour  White aluminium (RAL 9006)
 Walls panel colour  White (RAL 9003)
 Control  Switch

 Technical specifications

 Cushions control system

 Power supply - 3 phases  380 B, 50 Hz
 Power consumption  0.55 kW
 Control unit  External
 Unit protection class  IP54
 Average time of filling cushions  40 s
 Operating temperature  from -35 to +50°C
 PVC decorative curtain  3.6 kg / m
 Thickness  3 mm
 Specific weight  3.6 kg / m
 Inflatable cushions  0.5 mm
 Material  Cordura 1000
 Thickness  0.5 mm
 Specific weight  0.4 kg / m
 Tear strength limit  more than 290 N / mm

 Sandwich panel

 Thickness  40 mm
 Inside / outside colour  White (RAL 9003)

 Weight

 Article  DSHINF 3.8 x 3.6  DSHINF 4.9 x 3.6  DSHINF 3.3 x 3.4
 Weight, kg  230  290  210
