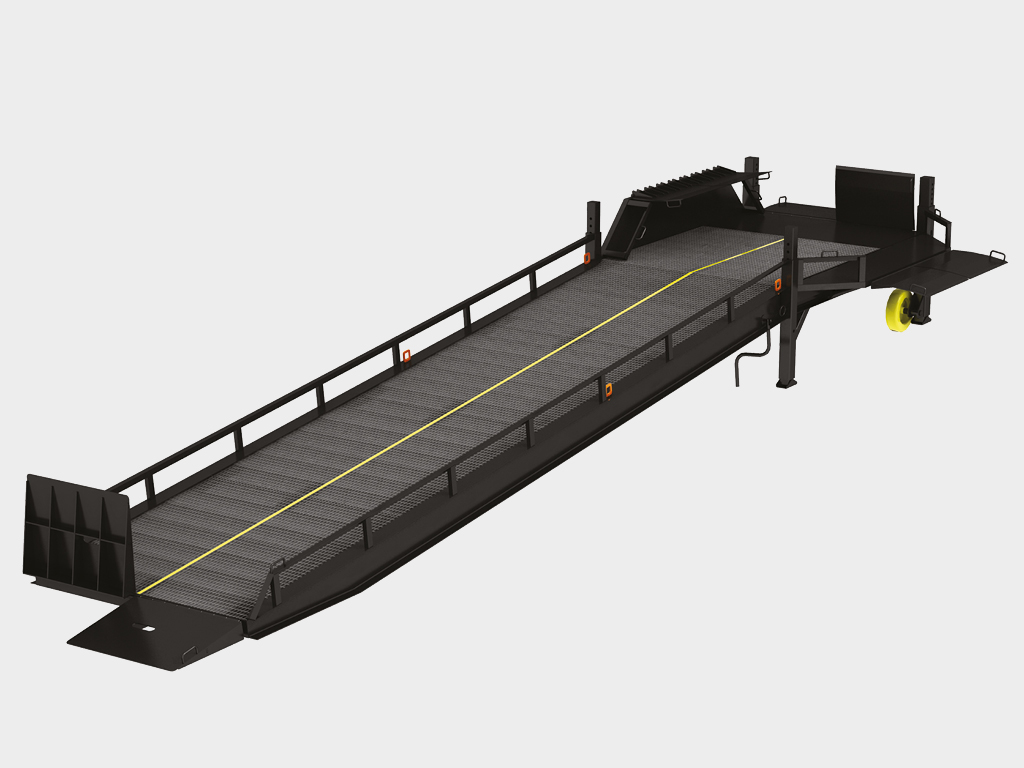

Three-Side Loading Mobile Yard Ramp of 3SRM series

Mobile yard ramps are specifically designed to provide ground to dock ramp access to high dock warehouses or trailer beds. They do not require special preparation to operate allowing for loading/unloading operations to be performed without construction of a traditional concrete ramp. All DoorHan ramps have a similar principle of operation, i.e. a ramp is lifted by a mechanical or hydraulic drive, equipped with safety system, and is easily transported to the warehouse dock or the trailer with a fork lift. If a ramp has legs then it is set on them, if the trailer bed is used as a support for the ramp then it is lowered onto it. After the loading/unloading operations have been completed the ramp is raised and transported to the place of storage. Mobile ramp with three-side loading allows servicing three trailers at a time.

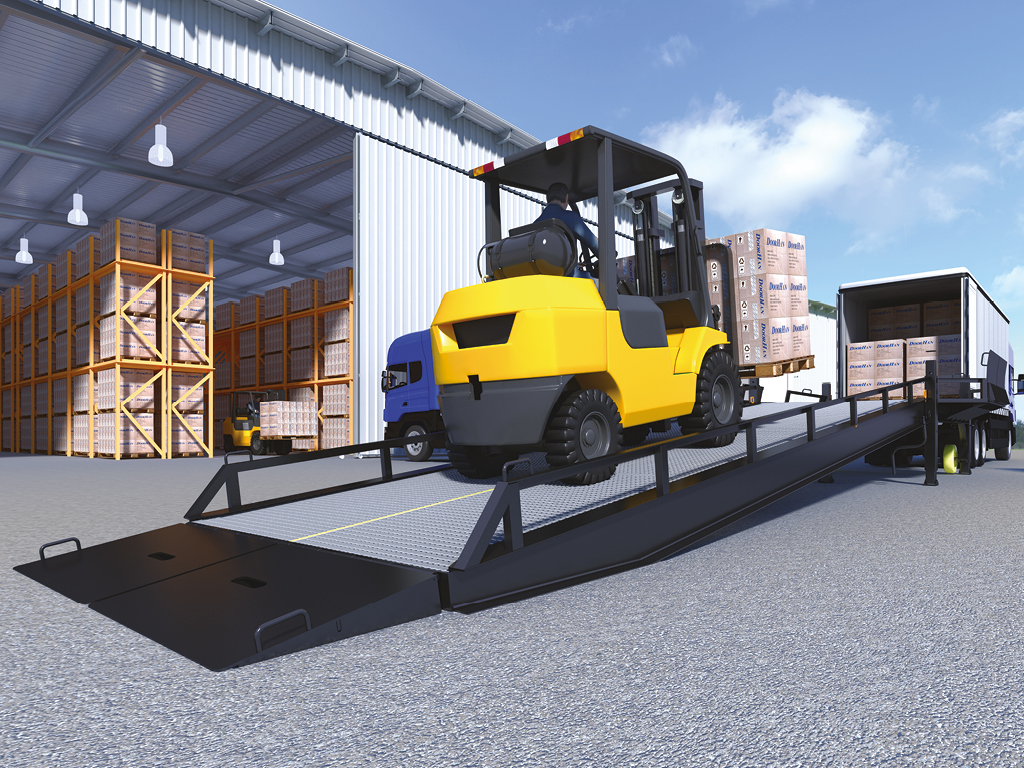

 Application

 Design



       Signal blue                       Jet black

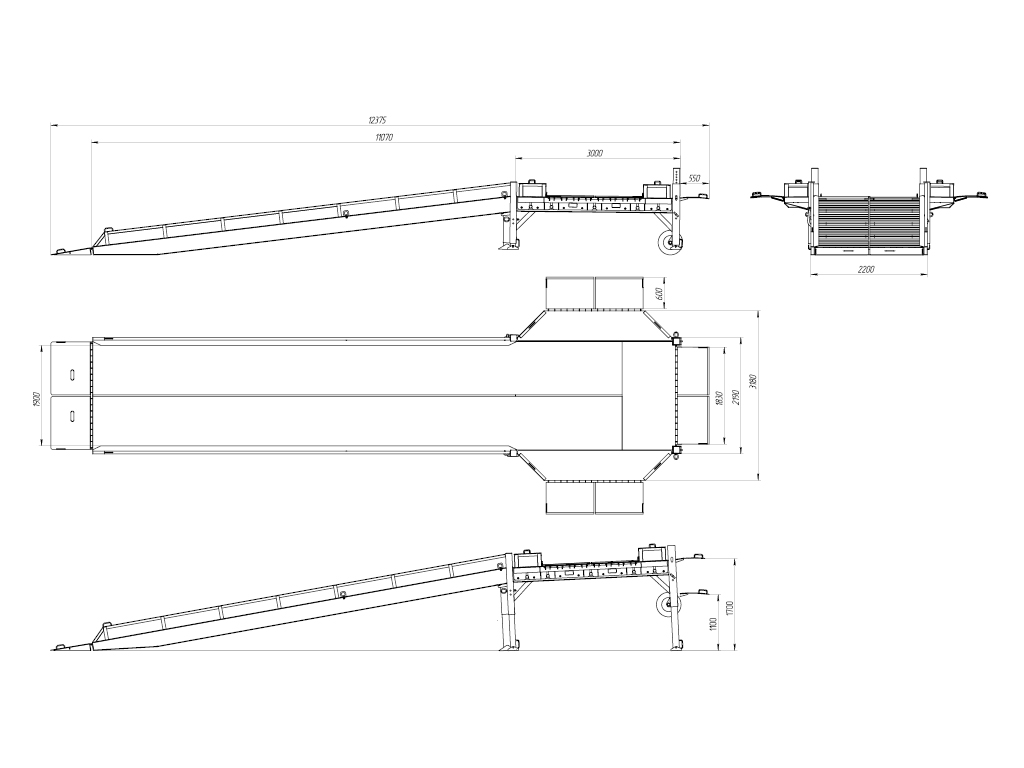

Construct and sizes

 1. Ramp track decking

 2. Bottom hinged lip

 3. Top hinged lip

 4. Front leg

 5. Rear leg

 6. Mechanical drive



Size Table

 Parameters                                                                                                                 Value

 Length , mm  12 375
 Width , mm  4 380
 Ramp track width , mm  1 900





Mounting

Standard Construction

Three-side loading mobile yard ramp

 Symbol , parameter name                                                                                                                 Calculation formula

 H, mm Length  12 375
 B, mm Width  4 380
 b1 , mm Operating range , upward   1 500
 b2 , mm Operating range , downward  1 100





 Specifications

 Parameter                                                     Value                                         Note

 Load capacity, kg ( kN )  7 000 ( 70 ) / 10 000 ( 100 )
 Maximum point load, H / mm²  1,3  at customer's request - 6,5
 Number of lifting cylinders, pcs.  2  for ramp with hydraulic drive
 Power, W  1,5  power of the hydraulic pump electric drive ( for mobile ramps with hydraulic drive )
 Supply voltage, V  380
 Supply voltage, V  24
 IP protection class  54
 Preparation of steel surface before   application of paints, class  Sa2
 Hydraulic fluid  low-temperature STATOIL   Hydraulic 131 oil
 Weight, kg  3 891
 Operating temperature range, °C  -30...+50
